The Patient-Centered DR Room: When the Patient Can’t Come to the Setup, the Setup Comes to the Patient

Newheek-Uarm 10月 28, 2026

a patient-centered DR room is planned around the patient’s path through the room — stretcher width, transfer points, wheelchair turning space and seated positioning — not around the equipment first. Most radiology rooms are arranged around the machines: tube stand here, wall bucky there, table wherever it fits. Then the first stretcher arrives, and suddenly the doorway is tight, the transfer from wheelchair to upright bucky is awkward, and every chest exam turns into a small logistics project. This article looks at the U-arm room as a system built around patient flow.

This is the room-level companion to three earlier articles on this site: one on upright chest X-rays for patients who can’t stand, one on the bucky stand itself, and one on room requirements such as space, ceiling height and shielding. Those cover single problems. This one connects them.

Why equipment-first layouts fail patients

A typical failure pattern looks like this. The room is fitted first: the U-arm column is placed where the wall power and floor anchors are convenient, the table sits against the far wall, the wall bucky lands on the remaining free wall. On installation day everything works — with nobody in the room but the engineer. Then the first two real patients arrive: one on a stretcher after a fall, one in a wheelchair who cannot use the wall bucky standing.

• The stretcher barely fits through the door swing, and there is no room to turn it alongside the table, so the patient is transferred twice instead of once;
• The wheelchair cannot get close enough to the wall bucky because the table’s corner blocks the approach path;
• The seated position works only by rotating the whole U-arm to an angle that collides with the corridor-side wall.

None of this is an equipment failure. It is a sequencing failure: the room was designed around hardware, not around the sequence of people moving through it.

Plan the path first: door, stretcher, transfer point

Before any equipment is positioned, walk the patient’s route on paper. Three checkpoints matter most:

• Door width and swing direction. A stretcher with side rails needs more clearance than a standing patient. If the door opens inward into the room, it can wipe out the exact corner where a wheelchair would need to turn. Outward-opening doors or sliding doors remove this conflict entirely;
• One transfer, not two. The ideal route lets a stretcher pull up alongside the table so the patient moves across once, in one controlled motion. If the table is parked against a wall, that lateral approach disappears and every transfer becomes a lift;
• A parking spot for the wheelchair. Wheelchair patients who can do a standing or seated exam at the wall bucky need somewhere to leave the chair during the exposure — out of the imaging field, out of the walkway, and ideally out of the direct beam line. That spot should be drawn on the plan, not improvised.

The three-position triangle: upright, seated, recumbent

A U-arm room earns its floor space by covering three patient positions with one column. The layout question is how the three positions relate to each other:

• Upright against the wall bucky is the anchor position. The column’s reach to the wall stand should let the tube track a chest-height detector without the operator repositioning the patient;
• Seated work — for wheelchair users and frail patients — happens in the same zone, which means the space between the column and the wall stand must stay clear enough for a chair, with the U-arm rotated so the beam points horizontally at chest height;

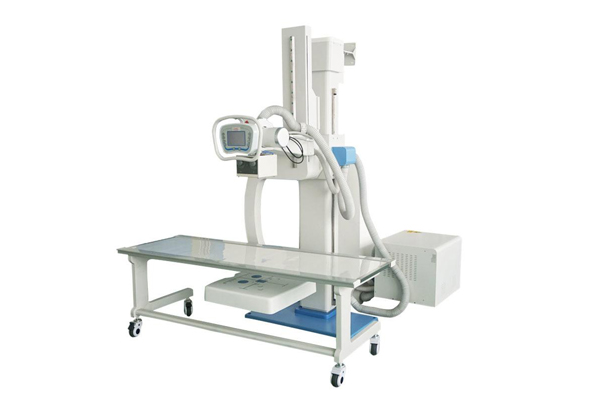

• Recumbent work on the table needs the stretcher approach described above. The closer the table sits to the door side of the room, the shorter the transfer path and the less the stretcher has to be maneuvered around the column base.

When these three zones overlap or block each other, patients get moved more, and every extra move is a chance for a fall, a failed position, or a repeat exposure. If you are weighing different room arrangements, the comparison of room layout requirements gives the dimensional side; the workflow side lives here.

Design for the seated patient, not just the standing one

Seated examinations are where equipment-first layouts fail hardest, because a seated patient needs the most surrounding free space: the wheelchair itself, a footrest clearance, and a horizontal beam path that nobody planned for. Three practical rules:

• Keep one quadrant of the room — ideally the one nearest the wall bucky — completely free of fixed obstacles below waist height, so a wheelchair can roll in and orient sideways or facing the stand;
• Check that the U-arm’s rotation range allows the tube to reach chest height of a seated patient on the wall-stand side, not only on the open-room side. Some corner placements make this geometrically impossible;
• Treat the transfer from wheelchair to wall bucky as a designed step: chair parked, patient assisted into position, exposure, assisted return. If any of those steps happens in a cramped corner, the room plan, not the staff, is at fault.

The dedicated article on wheelchair and mobility-limited workflows covers the positioning technique itself; the room’s job is to give that technique room to happen.

Technologist ergonomics count as patient safety

A room that exhausts its operators eventually harms patients. Every double transfer, every blocked approach path and every improvised workaround adds steps where things go wrong. When the injury data on manual bucky operation shows how repetitive strain accumulates, the same logic applies to room-level workflow: distance walked, turns made, transfers performed. A patient-centered layout is usually also the more ergonomic one — the same clear floor space that lets a stretcher approach the table sideways also lets the technologist work without twisting.

A pre-installation walk-through checklist

Before finalizing any U-arm room layout, run this sequence with the actual dimensions in hand:

1. Walk the route with a tape measure — door clear width, tightest corner, distance from door to table position;
2. Mock up the stretcher approach — mark on the floor where the stretcher parks for a table transfer, and confirm it does not cross the column base or the tube’s rotation envelope;
3. Draw the three-position triangle — upright at the wall stand, seated in the same zone, recumbent on the table — and check the zones do not overlap;
4. Locate the wheelchair parking spot and confirm it is outside the beam path and the walkway;
5. Rehearse one seated exam on paper: chair in, patient positioned, exposure, patient out. If any step needs an improvised workaround, move equipment before you pour anchors.

Rooms configured as complete sets — column, wall bucky and table specified together — make this easier, because the three pieces share dimensions and motion ranges by design. See, for example, the manual universal system with table and wall stand, the motorised version, and the multifunctional radiography system pages for how the three-position coverage is packaged.

FAQ

How much clearance does a stretcher need to transfer a patient onto an X-ray table?

Plan for the stretcher to park alongside the table with working space on both sides, so staff can stand on either side during the transfer. The exact clearance depends on the stretcher model; measure your facility’s actual stretcher including side rails, and add margin for the transfer motion itself. If the approach requires turning the stretcher, budget extra floor area for the turn.

Can a U-arm system handle seated chest X-rays for wheelchair patients?

Yes — that is one of the U-arm’s core advantages, since the column rotates and the tube tracks vertically. What matters is the room layout: the approach zone near the wall bucky must stay clear so the wheelchair can get close, and the arm’s rotation range must reach a seated chest height. Check both during the planning stage, not after installation.

Should the X-ray table go near the door or the far wall?

Near the door, in most cases. A table close to the entry shortens the stretcher path, reduces maneuvering around the column, and makes one-transfer moves realistic. The far wall placement suits the wall bucky and upright work instead. The exact arrangement depends on the room’s shape, door position and column reach.

What should I decide first: equipment model or room layout?

Decide the room’s patient-flow plan first — routes, transfer points, the three-position zones — then choose equipment whose dimensions and motion ranges fit that plan. Equipment can be re-specified; a room built around the wrong flow pattern usually cannot be fixed without construction work.
