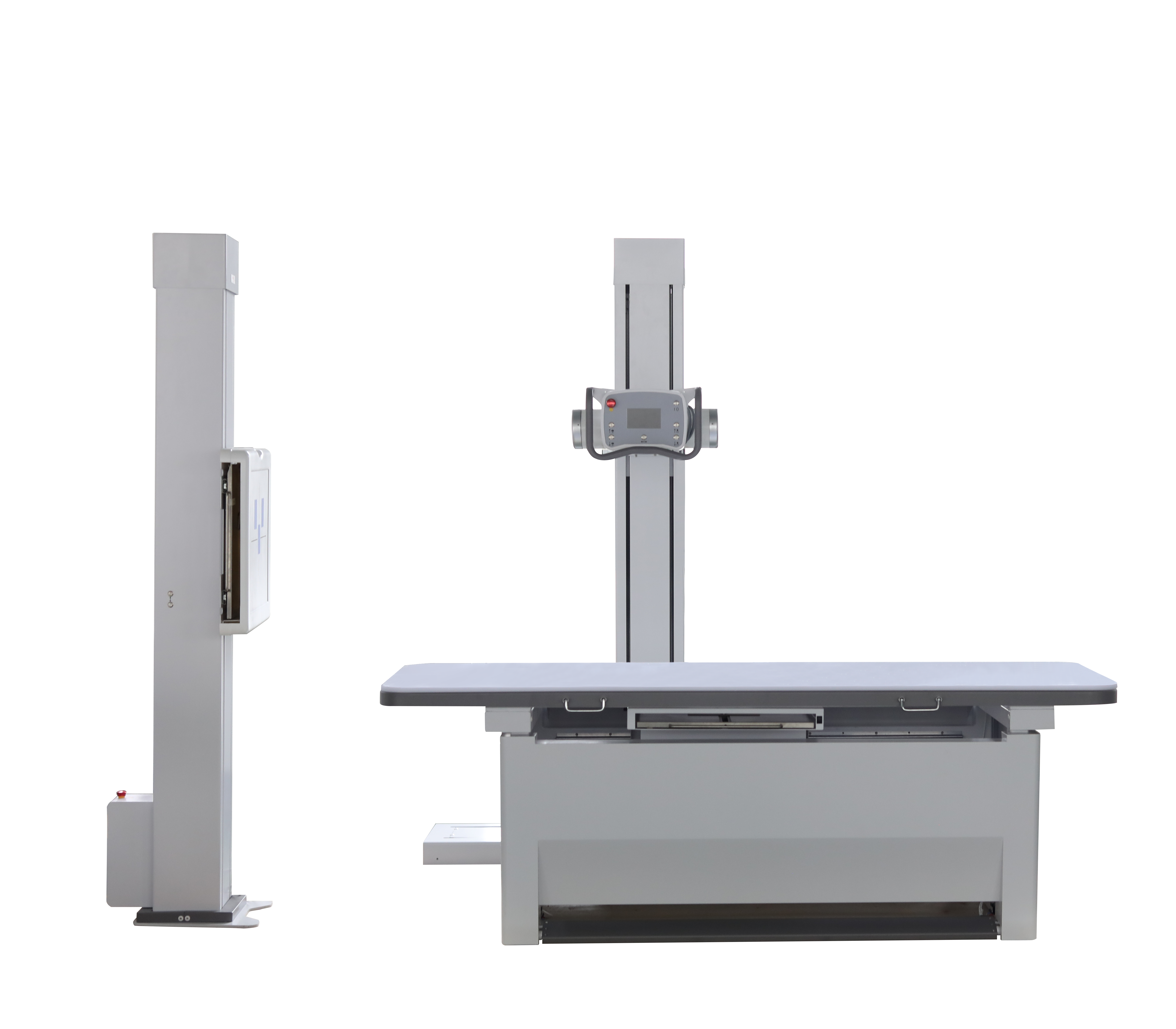

Product Overview
The Newheek Electric Double Bucky Stand features electric locking design, which can be matched with an X-ray tube, collimator, high-voltage generator and high-voltage cable to assemble a complete double-column X-ray machine. It is a core supporting rack for stationary radiography, designed for stable, flexible and precise human body radiography examination in medical imaging departments.
Key Technical Specifications
All parameter data of the stand are strictly standardized as below without modification:
- Longitudinal movement range of column: 0~170 cm
- Upward and downward movement range of X ray tube: 40~150 cm
- Rotation angle of X ray tube around cross arm: ±90°
- Vertical movement range of Bucky stand box center: 30~155 cm
- Overall equipment dimensions: 202×66×67 cm
- Compatible cassette size: 17×17 inch / 432 mm × 432 mm
Core Advantages & Design Highlights
1. Electric Locking Structure for Stable Positioning
Equipped with electric locking function, the stand can firmly fix the tube arm and Bucky panel at any required position during shooting. It eliminates position shifting caused by accidental touch, ensuring consistent imaging accuracy for all patients.
2. Full-Range Adjustable Movement for All Body Parts
The multi-dimensional adjustable structure covers a wide height and rotation range:
- The column’s 0–170 cm longitudinal stroke adapts to different examination room layouts;
- The X-ray tube’s 40–150 cm vertical travel and ±90° cross-arm rotation support full-body radiography, including chest, abdomen, limbs and spine;
- The Bucky stand box’s 30–155 cm vertical center movement fits patients of all heights, from children to tall adults.
3. Universal Compatibility with Standard X-ray Components
This double Bucky stand works seamlessly with mainstream X-ray supporting parts: X-ray tube, collimator, high-voltage generator and high-voltage cable. Hospitals can combine it with their existing imaging equipment to build a full double-column X-ray system without extra customization costs.
4. Standard 17×17 Inch Cassette Compatibility
It supports 17×17 inch (432 mm × 432 mm) imaging cassettes, matching most traditional film cassettes and digital DR flat panel detectors widely used in global medical facilities.
5. Compact Overall Size for Flexible Installation
With overall dimensions of 202×66×67 cm, the rack occupies limited floor space. It can be installed in medium and small radiology rooms, outpatient clinics, community hospitals and private medical centers with narrow space conditions.
Application Scenarios
This electric double Bucky stand is widely suitable for:
- General hospital radiology departments
- Private medical imaging clinics
- Physical examination centers
- Orthopedic and internal medicine routine X-ray screening
- Fixed radiographic examination for all age groups
Brand Note
This medical X-ray accessory is independently developed and manufactured by Newheek, a professional supplier of X-ray imaging equipment and supporting racks, providing reliable, cost-effective radiography hardware for global medical customers.
