Veterinary X‑Ray Table NKPIBS

Email WhatsApp

Direct Manufacturer & Exporter

Weifang Newheek Electronic Tech Co., Ltd. — X-ray U-arm equipment.

Global Shipping

X-ray U-arm systems supplied to distributors and clinics worldwide.

Fast Response

WhatsApp +86 19062611512 / Email — replied within 24h (Mon–Sat).

Product Brief

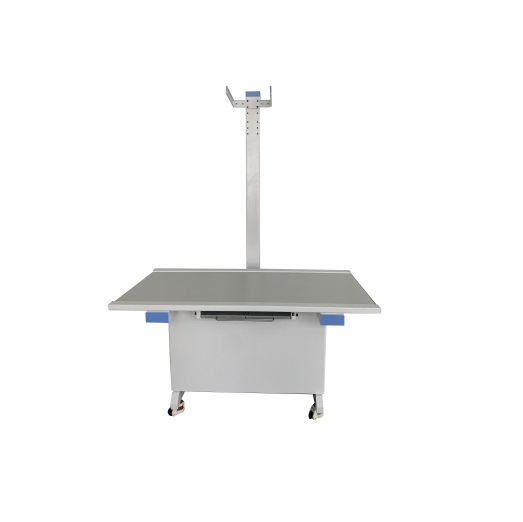

NKPIBS veterinary X‑ray table is specially designed for pet hospitals at all levels. It works cooperatively with veterinary portable X‑ray machines to complete radiographic examination for animals. Multiple optional configurations make it adaptable to diverse clinical demands in veterinary imaging.

Product Features

Compatible with veterinary portable X‑ray machines, widely applicable for pet hospitals of all levels.
7‑level adjustable height for portable machine mounting position; adjustable width of hanging handle to fit various portable X‑ray units.
Equipped with Fuma casters, supporting both mobile movement and fixed positioning.
Four‑direction floating table surface with electromagnetic locking function.
Supports X‑ray radiography for pets in standing, supine and lateral recumbency positions. It can capture images of head, chest, abdomen, limbs, bones and other body parts.

Optional Configuration Note

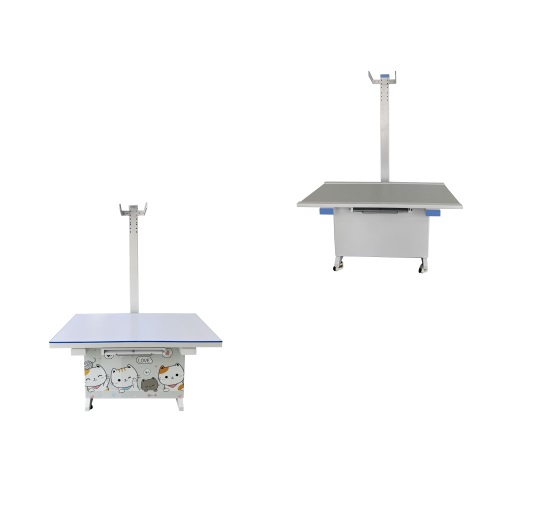

Two table‑surface versions are available: flat type and bunk‑rail type.
Fixed feet are supplied as standard; mobile wheels are optional accessories.

Main Specification

Item	Parameter
Table surface material	MDF
Table size	140cm × 72.5cm
Table height (including wheel height)	75cm
Table height (not including wheel height)	65cm
Column height	200‑212cm, 3‑steps adjustment
Overall size	140cm × 72.5cm × 212cm
Horizontal travel of table surface	90cm
Longitudinal travel of table surface	40cm
Box itinerary	23cm
Distance from the focus of the tube to the grid	130cm
Distance from the focus of the tube to the table surface	127cm
Adjustable width for hanging portable devices	25.3cm‑28cm
