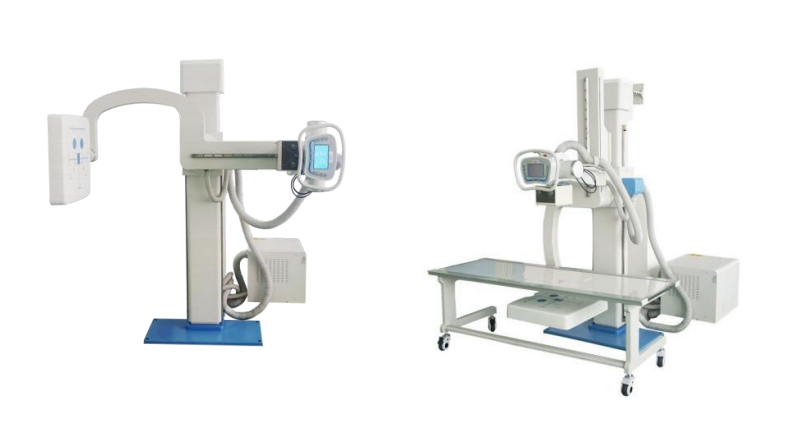

NKX343 and NKX543 UC-arm digital DR radiography equipment is a complete digital X-ray diagnostic system. The UC-shaped bending frame features flexible multi-angle adjustment. Two configurations are available: the vertical stand-alone model for upright radiography, and the version matched with mobile radiographic table to support both recumbent and standing patient examinations. Equipped with high-frequency X-ray generator and amorphous silicon flat panel detector, the unit delivers fast, high-definition digital radiographic images for hospitals, clinics and medical imaging centers.

Power Supply

Voltage: 380V±10%, three-phase five-wire; frequency: 50HZ±1HZ; capacitance: ≥50kVA; internal resistance: ≤0.3Ω

Radiography Conditions

Tube voltage range: 40~125kV (optional 150kV), 1kV step

Tube current range: 10~640mA; mA accuracy ≤±10%

Exposure time range: 1–10000ms

mAs range: 0.1–640mAs; mAs accuracy ≤±(5%+0.2mAs)

APR storage capacity: 24000 datasets

Auxiliary output power: 24VDC 300mA, 220VAC 5A

30kW (optional 50kW) /125kV (optional 150kV); dual focus 0.6mm/1.2mm; anode heat capacity:140kJ

Maximum irradiation field:440mm×440mm (SID=100cm)

Average brightness of light field: >160lux; illumination contrast: >4:1; bulb:24V/150W

Single lighting time of light field lamp: 30S

Focus-to-tabletop distance: 60mm (adjustable); inherent filtering (75kV):1mmAl

Type: amorphous silicon, cesium iodide scintillator

Imaging size:17″×17″

Spatial resolution:3.6lp/mm

Dimension:460×460×5mm

Average weight:300g

Panel housing: carbon fiber board + engineering plastic

Frame material: aluminum alloy

A/D bit depth:16 bit

Data interface: Gigabit Ethernet

Full image acquisition time: ≤3s

Weight:3.2kg

Specifications subject to change without prior notice

UC arm vertical travel: 1200mm±20mm

Minimum ground clearance of UC arm:480mm±20mm

UC arm rotation angle:0°~90°

Detector rotation range: -45° ~ +45°

SID adjustable range:1000mm~1800mm

Table dimension (L × W × H): 2020mm×800mm×690mm

Optional tabletop material: density board / carbon fiber / Acrylic
